PWR-1:  Pipe Weld Replica Set

PWR-1: Pipe Weld Replica Set

  • Five-piece set Designed for training pressure piping welding inspectors and welders

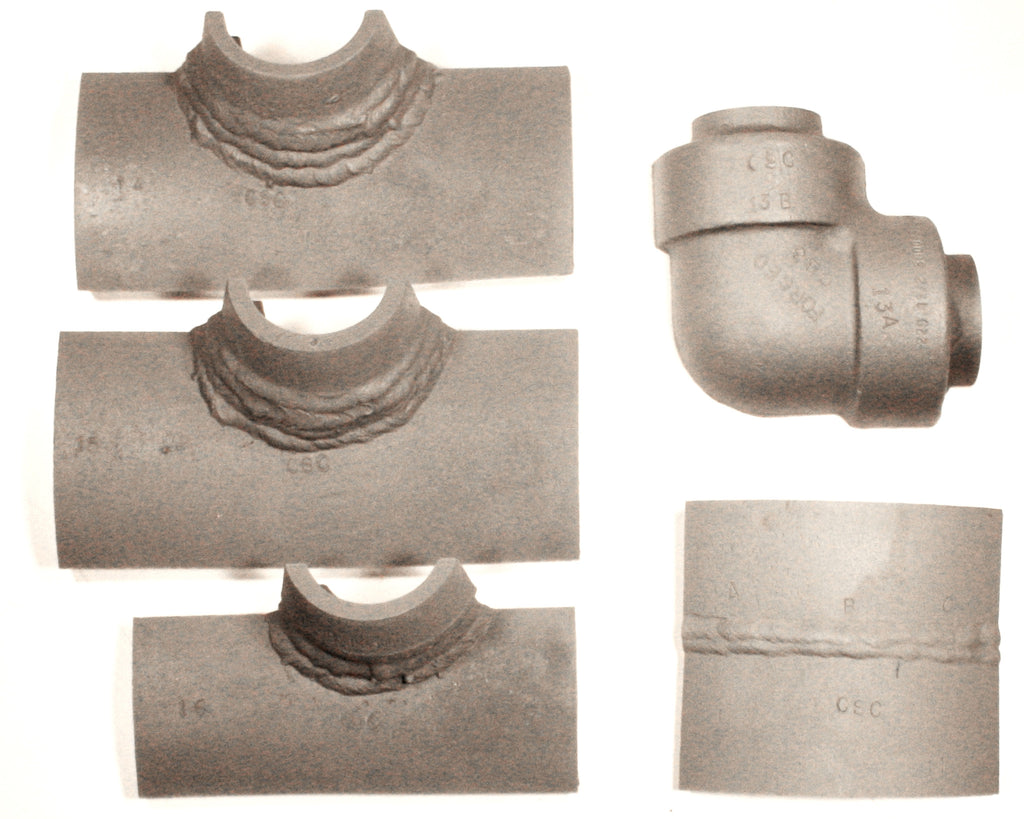

  • Samples include: 3 “Weld-o-Let” branch connections, Sectioned socket-welded elbow, and Groove-welded pipe butt joint
  • Discontinuities present include: incomplete joint penetration, improper pipe retraction (in socket-welded joint), excessive root reinforcement, and porosity
  • Students can also measure characteristics such as fillet and groove weld size and determine their compliance in accordance with applicable standards
  • Interpretation sheet available at request for trainers and educators
